No 624 patrol craft (1972-1978/1992)

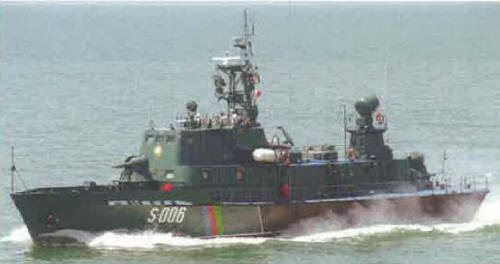

S006 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| (ex-ПСКР-624 [PSKR-624]) | 624, 2004- S004, 2015- G122 | 126 | Almaz, Leningrad, USSR | 6.1972 // 3.7.1992 | Navy 7.2015, in service (2020) | ||
| (ex-ПСКР-625 [PSKR-625]) | 625, 2004- S005, 2015- G123 | 127 | Almaz, Leningrad, USSR | 1975 // 3.7.1992 | Navy 7.2015, in service (2020) | ||
| (ex-AK-234) | 2004- S006, 2015- G124 | 137 | Almaz, Leningrad, USSR | 1978 // 3.7.1992 | Navy 7.2015, in service (2020) | ||
| (ex-AK-374) | 2004- S007, 2015- G125 | 139 | Almaz, Leningrad, USSR | 1978 // 3.7.1992 | Navy 7.2015, in service (2020) |
Technical data
| Displacement standard, t | 211 |
|---|---|
| Displacement full, t | 245 |
| Length, m | 40.0 |
| Breadth, m | 7.91 |
| Draught, m | 1.96 |
| No of shafts | 3 |
| Machinery | 3 M-504B diesels |
| Power, h. p. | 15000 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1910(11) |
| Armament | 2 x 2 - 30/71 AK-230, 4 - 400 TT, 2 DCR (12) |
| Electronic equipment | 4Ts-30-125, Ksenon radars, MG-329 Sheksna sonar |
| Complement | 31 |
Standard scale images
S004 2010
Graphics
S006 2008
Project history
Former Soviet project 205P patrol craft, belonged to Border Guard (first two) and Navy (others). Coast Guard.
Modernizations
None.
Naval service
No significant events.
