MT.130 minelayers/minesweepers
RD60 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| MT.130 (ex-MT.XXIX) | 85 | Danubius, Porto Ré | 10/1917 | 20.7.1918 | 1/1920 // --- | completed for Italy (RD58) | |
| MT.131 (ex-MT.XXX) | 86 | Danubius, Porto Ré | 10/1917 | 24.8.1918 | 2/1920 // --- | completed for Italy (RD59) | |
| MT.132 (ex-MT.XXXI) | 87 | Danubius, Porto Ré | 11/1917 | 28.9.1918 | 7/1920 // --- | completed for Italy (RD60) | |
| MT.133 (ex-MT.XXXII) | 88 | Danubius, Porto Ré | 11/1917 | 1931 | 1931 // --- | completed for Yugoslavia (Марjан [Marjan]) | |
| MT.134 (ex-MT.XXXIII) | 89 | Danubius, Porto Ré | 12/1917 | 1931 | 1931 // --- | completed for Yugoslavia (Мосор [Mosor]) | |
| MT.135 (ex-MT.XXXIV) | 90 | Danubius, Porto Ré | 12/1917 | 1931 | 1931 // --- | completed for Yugoslavia (Малинска [Malinska]) | |
| MT.136 (ex-MT.XXXV) | 91 | Danubius, Porto Ré | 12/1917 | 1931 | 1931 // --- | completed for Yugoslavia (Мељине [Meljine]) | |
| MT.137 (ex-MT.XXXVI) | 92 | Danubius, Porto Ré | 12/1917 | 1931 | 1931 // --- | completed for Yugoslavia (Мљет [Mljet]) | |
| MT.138 (ex-MT.XXXVII) | 93 | Danubius, Porto Ré | 2/1918 | --- | --- | BU incomplete | |
| MT.139 (ex-MT.XXXVIII) | 94 | Danubius, Porto Ré | 2/1918 | --- | --- | BU incomplete | |
| MT.140 (ex-MT.XXXIX) | 95 | Danubius, Porto Ré | 8/1918 | --- | --- | BU incomplete | |
| MT.141 (ex-MT.XL) | 96 | Danubius, Porto Ré | 9/1918 | --- | --- | BU incomplete | |
| MT.142 (ex-MT.XLI) | 97 | Danubius, Porto Ré | 9/1918 | --- | --- | BU incomplete | |
| MT.143 (ex-MT.XLII) | 98 | Danubius, Porto Ré | 9/1918 | --- | --- | BU incomplete |
Technical data
| Displacement normal, t | as minesweeper: 115 as minelayer: 128 |
|---|---|
| Displacement full, t | as minelayer: 145 |
| Length, m | 30.1 oa 29.4 pp |
| Breadth, m | 6.70 |
| Draught, m | as minesweeper: 1.40 as minelayer: 1.70 |
| No of shafts | 2 |
| Machinery | 2 VTE, 1 Yarrow boiler |
| Power, h. p. | 280 |
| Max speed, kts | 11.6 |
| Fuel, t | oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 47/40 SFK L/44 S, 2 x 1 - 8.80, 24 - 39 mines or mechanical minesweeping gear |
| Complement | 27 |
Standard scale images

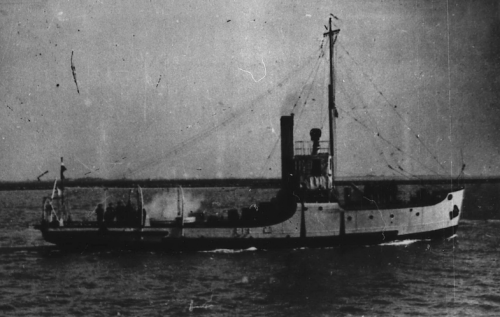

Yugoslavian Malinska 1931
Graphics
RD60 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Designed as minelayers but six ships were reordered as minesweepers. During building all were converted to minesweepers.
