MAGNET torpedo gunboat (1896)

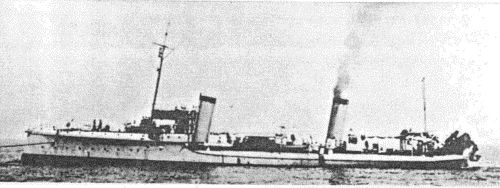

Magnet 1916 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Magnet   576 Schichau, Elbing, Germany 1895 31.3.1896 12/1896 to Italy 1920


Technical data


Displacement normal, t

485

Displacement full, t510
Length, m

67.5 pp

Breadth, m

8.20

Draught, m

3.30

No of shafts2
Machinery2 VTE, 4 Schulz-Thornycroft boilers
Power, h. p.

6000

Max speed, kts

26

Fuel, t

coal

Endurance, nm(kts)4000(10)
Armament

6 x 1 - 47/40 SFK L/44 H, 2 x 1 - 450 TT

Complement

80



Standard scale images


<i>Magnet </i>1917
Magnet 1917


Graphics


<i>Magnet </i>1916 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Magnet 1916 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Largest of Austrian "torpedo ships".

Modernizations

1916: - 2 x 1 - 47/40; + 2 x 1 - 66/42 SFK L/45, 1 x 1 - 450 TT

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
