IX torpedo boats (1881)





IX

Ships


Names Builders Completed Losses Transfers Discarding

IX

X

Yarrow, Poplar, UK: IX, X

1881: IX, X

none

none

1904: IX, X



Technical data


Displacement normal, t

37

Displacement full, t47
Length, m

31.2

Breadth, m

3.69

Draught, m

1.60

No of shafts

1

Machinery

1 VC, 1 locomotive boiler

Power, h. p.

500

Max speed, kts

18

Fuel, t

coal

Endurance, nm(kts)
Armament

1 x 1 - 37/20 SFK L/23 H, 2 - 356 TT (bow)

Complement

15



Standard scale images


<i>IX </i>1881
IX 1881


Graphics

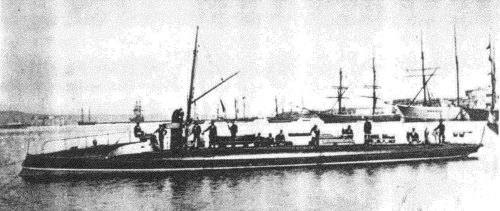

<i>IX</i>
IX


Project history

Copies of Yarrow-built Russian Batum.

Modernizations

None.

Naval service

No significant events.
