KAISER KARL IV armoured cruiser (1900)

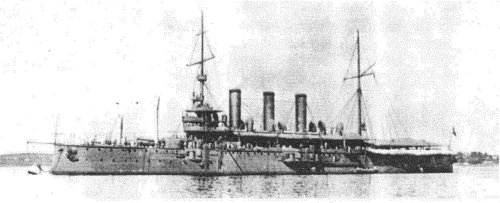

Kaiser Karl VI 1909 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Kaiser Karl VI   297 STT, San Rocco 1.6.1896 4.10.1898 23.5.1900 to United Kingdom 1920, BU


Technical data


Displacement normal, t

6166

Displacement full, t6864
Length, m

119.0 oa 117.9 wl

Breadth, m

17.3

Draught, m

6.75

No of shafts

2

Machinery

2 4-cyl VTE, 18 Belleville boilers

Power, h. p.

12000

Max speed, kts

20.8

Fuel, t

coal 820

Endurance, nm(kts)3500(10)
Armour, mmHarvey; belt: 220 - 170, turrets: 200, casemates: 80, deck: 60 - 40, CT: 200 - 100
Armament

2 x 1 - 238/37 G. L/40 K.94, 8 x 1 - 149/37 G. L/40 K.96, 2 x 1 - 66/16 G. L/18, 16 x 1 - 47/40 SFK L/44 S, 2 x 1 - 47/30 SFK L/33 H, 2 x 1 - 8.80, 2 - 450 TT (beam)

Complement

535



Standard scale images

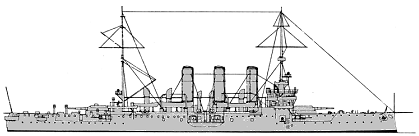

<i>Kaiser Karl VI </i>1900
Kaiser Karl VI 1900


Graphics


<i>Kaiser Karl VI </i>1909 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Kaiser Karl VI 1909 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Improved version of previous ship.

Ship protection

The belt was 220-170mm. Main guns turrets had up to 200mm protection, 15cm guns were protected by 80mm casemates. There was 60-40mm protective deck. CT had 200-100mm sides.

Modernizations

None.

Naval service

Kaiser Karl VI was ceded as war reparation to UK, but sold to Italy and scrapped there.

Many thanks to Wolfgang Stöhr for additional information on this page.
