Monarch Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Monarch			Marinearsenal Pola	31.7.1893	9.5.1895	11.5.1898	accommodation ship 3.1918
Wien		281	STT, San Rocco	16.2.1893	6.7.1895	13.5.1898	sunk 10.12.1917
Budapest		288	STT, San Rocco	16.2.1893	27.4.1896	12.5.1898	accommodation ship 3.1918

Technical data

Displacement normal, t	Monarch, Budapest: 5645 Wien: 5636
Displacement full, t
Length, m	99.2 oa 97.7 wl
Breadth, m	17.0
Draught, m	6.40
No of shafts	2
Machinery	Monarch, Wien: 2 VTE, 7 cylindrical boilers Budapest: 2 VTE, 16 Belleville boilers
Power, h. p.	8500
Max speed, kts	17.5
Fuel, t	coal 500
Endurance, nm(kts)	3000(10)
Armour, mm	Nickel steel; belt: 270-220, turrets: 250, casemates: 80, deck: 40, CT: 250
Armament	2 x 2 - 238/37 K. L/40 K.94, 6 x 1 - 149/37 G. L/40 K.94, 2 x 1 - 66/16 G. L/18, 10 x 1 - 47/40 SFK L/44 S, 4 x 1 - 47/30 SFK L/33 H, 2- 450 TT (beam)
Complement	426

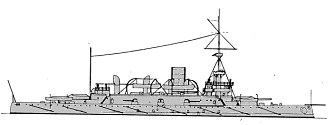

Standard scale images

Graphics

Project history

With the construction of the Monarch class, Austria embarked on a new path with Siegfried Popper, the new Director of Naval Construction. For the first time genuine turrets were used, but like all Austrian warships, because of the budget limitations, they were too small to be efficient, well-balanced battleships, and were officially designed as Coast Defence Ships.

Ship protection

The belt had 77.7m length (83% of ship length), starting from the stem, and extended from 1.2m under to 0.9m above wl. It consisted of two strakes: upper, 270mm amidships, 200mm abreast the aft barbette and 150mm between the stem and fwd barbette; and lower, tapered from 220mm to 140mm at lower edge amidships, tapered from 160mm to 80mm at lower edge abreast the aft barbette and 150mm between fwd barbette and the stem. Aft ends of the belts were closed by 200mm bulkhead. Flat steel deck had 40mm between the stem and aft barbette and was connected with upper edge of the belt. Aft part of the ship was protected by 60mm lower deck. Upper belt between barbettes was 2.42m wide and had 60mm thickness, its ends were closed by 200mm bulkheads. 15cm casemate had 80mm vertical and 12mm horizontal protection. Main and aft CTs had 220mm sides. Barbettes had 220mm protection over the upper deck and 160mm between upper and main decks. Turrets had 250mm protection.

Modernizations

1917, Monarch: + 1 x 1 - 66/42 G. L/45 BAG

1917, Wien, Budapest: + 1 x 1 - 66/47 G. L/50 BAG

Naval service

Monarch had a mutiny on board in February 1918 while in Cattaro harbour. From April 1918 she was accommodation ship of the submarine base, and she was allocated to Great Britain as war reparation, and scrapped in Italy. Wien was sunk during the night of 9.10 December 1917 off Trieste by the Italian MTB MAS15 under the command of Luigi Rizzo. Budapest was decommissioned in March 1918 to serve as accommodation ship for the Pola submarine base. In May/June 1918 a 38cm/17cal howitzer 38cm Haubitze M.16  was installed instead of No 1 turret for a planned coastal bombardment which never took place. In 1920 she was allocated to Great Britain and scrapped in Italy.
