SANTA FE submarines (1933)

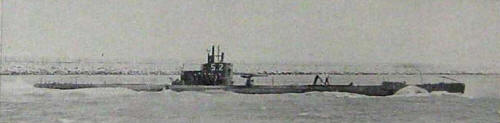

Santiago del Estero 1937 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Santa Fe S1 34 Tosi, Taranto, Italy 1928 27.7.1931 1933 stricken 9.1956
Santiago del Estero S2 36 Tosi, Taranto, Italy 1928 28.3.1932 1.1933 stricken 4.1959
Salta S3 35 Tosi, Taranto, Italy 1928 17.1.1932 1.1933 stricken 8.1960


Technical data


Displacement standard, t755
Displacement normal, t935 / 1155
Length, m

69.2

Breadth, m

6.68

Draught, m

5.05

No of shafts

2

Machinery

2 Tosi diesels / 2 electric motors

Power, h. p.

3000 / 1400

Max speed, kts

17.5 / 9

Fuel, t

diesel oil 90

Endurance, nm(kts)7100(8) / 80(4)
Armament

1 x 1 - 102/40 Odero-Terni, 2 x 1 - 8.80, 8 - 533 TT (4 bow, 4 stern)

Electronic equipmenthydrophone
Complement

40

Diving depth operational, m80


Standard scale images


<i>Salta </i>1933
Salta 1933


Graphics


<i>Santiago del Estero</i> 1937 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Santiago del Estero 1937 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Submarines were designed by Tosi on a basis of Italian Settembrini, in the Argentina references figure as Tarantinos class (i.e. constructed in Taranto). The contract by 208,000£ for one boat unit was concluded 29.9.1926. Saddle-tank hull. Pressure hull was shared on 5 compartments, the central station was a bulk hold-refuge. Submarines arrived to Argentina 7.4.1933. For their basing old armoured cruiser General Belgrano was used.

Modernizations

1940s, all: + 1 x 1 - 40/60 Mk 1

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
