BUENOS AIRES destroyers (1938)





Santa Cruz 1952 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Buenos Aires E6, 1940- T6, 1952- D6 710 Vickers-Armstrong, Barrow, UK 1936 21.9.1937 4.1938 stricken 1971
Entre Ríos E7, 1940- T7, 1952- D7 720 Vickers-Armstrong, Barrow, UK 1936 21.9.1937 5.1938 stricken 1973
Corrientes E8, 1940- T8 721 Vickers-Armstrong, Barrow, UK 1936 21.9.1937 7.1938 collision 3.10.1941
San Juan E9, 1940- T9, 1952- D9 550 John Brown, Clydebank, UK 1936 24.6.1937 3.1938 stricken 1973
San Luis E10, 1940- T10, 1952- D10 551 John Brown, Clydebank, UK 1936 23.8.1937 3.1938 stricken 5.1971
Misiones E11, 1940- T11, 1952- D11 1021 Cammell Laird, Birkenhead, UK 1936 23.9.1937 9.1938 stricken 5.1971
Santa Cruz E12, 1940- T12, 1952- D12 1022 Cammell Laird, Birkenhead, UK 1936 3.11.1937 9.1938 stricken 1973


Technical data


Displacement standard, t1375
Displacement full, t2010
Length, m

97.5 wl 98.5 oa

Breadth, m

10.6

Draught, m

3.20

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 3 Admiralty 3-drum boilers

Power, h. p.

34000

Max speed, kts

35.5

Fuel, t

oil 450

Endurance, nm(kts)4100(14)
Armament

4 x 1 - 120/45 Vickers-Armstrong Mk F, 2 x 4 - 12.7/62, 2 x 4 - 533 TT

Complement

130



Standard scale images


<i>Buenos Aires </i>1957
Buenos Aires 1957
<i>Buenos Aires </i>1940
Buenos Aires 1940


Graphics

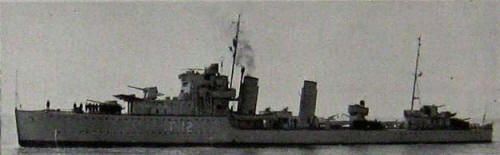

<i>Santa Cruz</i> 1952 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Santa Cruz 1952 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Ordered in the Great Britain under special 1934 programme, simultaneously with cruiser La Argentina. Destroyers were built by various private companies under drawings of British destroyer Gallant.

Modernizations

1956, all survived: - 1 x 4 - 533 TT; + 4 DCT, 1 DCR

1958-1959, all survived: - 1 x 1 - 120/45, 2 x 4 - 12.7/62, 1 x 4 - 533 TT; + 4 x 1 - 40/60 Mk 3, 2 - 324 ASW TL, 2 x 24 - 178 Hedgehog Mk 10 ASWRL, radars, sonar

Naval service

Corrientes has sunk 3.10.1941 as result of collision with cruiser Almirante Brown at Tierra del Fuego.

Many thanks to Wolfgang Stöhr for additional information on this page.
