General Belgrano 1930

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Garibaldi (ex-Giuseppe Garibaldi)			Ansaldo, Genoa, Italy	1894	27.5.1895	12.10.1896	stricken 3.1934
San Martin (ex-Varese)		49	Orlando, Livorno, Italy	1895	25.5.1896	5.1898	stricken 12.1935
General Belgrano (ex-Varese)		50	Orlando, Livorno, Italy	6.1896	25.7.1897	11.1898	submarine depot ship 1933
Pueyrredon (ex-Giuseppe Garibaldi)			Ansaldo, Genoa, Italy	8.1896	25.9.1897	9.1898	TS 1941, stricken 8.1954
Rivadavia (ex-Mitra)			Ansaldo, Genoa, Italy	10.3.1902	22.10.1902	1.1904 // ---	incomplete to Japan (春日 [Kasuga])
Moreno (ex-Roca)			Ansaldo, Genoa, Italy	5.1902	9.2.1903	1.1904 // ---	incomplete to Japan (日進 [Nisshin])

Technical data

Displacement normal, t	Garibaldi, San Martin, General Belgrano, Pueyrredon: 6775 Rivadavia: 7630 Moreno: 7700
Displacement full, t
Length, m	104.9 wl 111.7 oa
Breadth, m	18.2
Draught, m	7.11 mean
No of shafts	2
Machinery	Garibaldi, San Martin, General Belgrano, Rivadavia, Moreno: 2 VTE, 8 cylindrical boilers Pueyrredon: 2 VTE, 16 Belleville boilers
Power, h. p.	Garibaldi, San Martin, General Belgrano, Pueyrredon: 13000 Rivadavia, Moreno: 13500
Max speed, kts	20
Fuel, t	coal 1200
Endurance, nm(kts)	4800(10)
Armour, mm	Garibaldi, San Martin, General Belgrano: Harvey; belt: 150, ends: 80, bulkheads: 150, barbettes: 150, turrets: 150, secondary battery: 150, deck: 37 - 25, shields: 50, CT: 150 Pueyrredon: belt: 150, ends: 80, bulkheads: 150, barbettes: 150, turrets: 150, secondary battery: 150, deck: 37 - 25, shields: 50, CT: 150
Armament	Garibaldi: 2 x 1 - 254/40 Armstrong P, 10 x 1 - 152/40 Armstrong Z, 6 x 1 - 120/41 Armstrong T, 10 x 1 - 57/40 Hotchkiss, 10 x 1 - 37/20 Hotchkiss San Martin: 2 x 2 - 203/45 Armstrong U, 10 x 1 - 152/40 Armstrong Z, 6 x 1 - 120/41 Armstrong T, 10 x 1 - 57/40 Hotchkiss, 10 x 1 - 37/20 Hotchkiss General Belgrano, Pueyrredon: 2 x 1 - 254/40 Armstrong P, 14 x 1 - 152/40 Armstrong Z, 2 x 1 - 76/40 Armstrong N, 10 x 1 - 57/40 Hotchkiss, 12 x 1 - 37/20 Hotchkiss Rivadavia: 1 x 1 - 254/40 Armstrong P, 1 x 2 - 203/45 Armstrong U, 14 x 1 - 152/40 Armstrong Z, 10 x 1 - 76/40 Armstrong N, 6 x 1 - 47/40 Hotchkiss Moreno: 2 x 2 - 203/45 Armstrong U, 14 x 1 - 152/40 Armstrong Z, 10 x 1 - 76/40 Armstrong N, 6 x 1 - 47/40 Hotchkiss
Complement	Garibaldi, Pueyrredon: 500 San Martin: 540 General Belgrano: 520

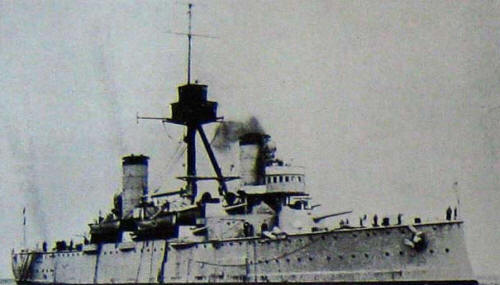

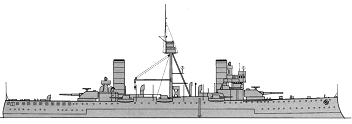

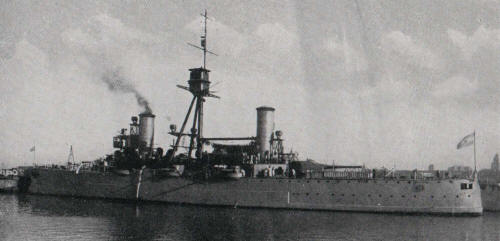

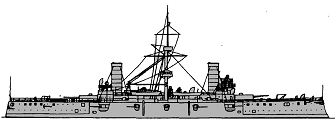

Standard scale images

Graphics

Project history

First two of these armoured cruisers which have done many noise in XIX-XX centuries edge, have been bought up in Italy under construction and have made the basic battle force of Argentine Navy up to commission of dreadnoughts. Very successful design combining good protection and strong armament at limited displacement; some kind of small fast battleships. 2 more such ships (Mitra and Roca) were ordered to Ansaldo in 1901. In connection with peaking of the Russian-Japanese relations unsuccessful attempt to buy them for Russian Navy has been made, after which failure in the end of 1903 they were bought up by Japan (Nisshin and Kasuga).

After modernization General Belgrano and Pueyrredon were re-classified as coast defence ships.

Ship protection

Main 150mm belt (full ship length, 2.8m high) and upper belt (52x2.0m) expanded to upper deck connecting with 150mm casemate protection, main and upper belts were closed by 150mm bulkheads abreast barbettes. Main belt thickness was 75mm on short parts at ship ends. 25mm deck was connected with lower edge of main belt by 38mm slopes. It has turtleback form and 38-25mm thickness outside barbettes. CT had 150mm sides. All 254, 203 and 152mm guns had 150mm protection.

Modernizations

1920s, Garibaldi: - 8 x 1 - 57/40, 10 x 1 - 37/20; + 2 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V

1920s, San Martin: - 4 x 1 - 57/40, 10 x 1 - 37/20; + 2 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V

1920s, Belgrano: - 6 x 1 - 57/40, 12 x 1 - 37/20; + 2 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V

1920s, Pueyrredon: - 6 x 1 - 57/40, 12 x 1 - 37/20

(1926-1930, Odero, Sestri Ponente), General Belgrano: boilers were replaced by 8 Yarrow oil-firing (1000t of oil, 13000hp, 17kts, 5600(10)nm); - 14 x 1 - 152/40, 4 x 1 - 76/40, 2 x 1 - 57/40; + 8 x 1 - 152/40 EOC Z (in shielded deck mounts)

(1926-1937, Puerto Belgrano N Yd), Pueyrredon: boilers were replaced by 8 Yarrow oil-firing (1000t of oil, 13000hp, 17kts, 5600(10)nm); - 14 x 1 - 152/40, 2 x 1 - 76/40, 2 x 1 - 57/40; + 8 x 1 - 152/40 EOC Z (in shielded deck mounts)

Naval service

In 1933 General Belgrano was deduced from battle structure and converted to submarine depot ship; in 1947 she was BU. Pueyrredon in 1941 was converted to TS, was in active service till 1952; 2.8.1954 stricken and in January, 1955 towed off for BU to Japan.
