ARGENTINEAN NAVY (ARGENTINA)

PREFECTURA NAVAL

MANDUBI patrol craft (1940)

Name No Builder Laid down Launched Comp Fate
Mandubi GC43 Arsenal de Río Santiago     1940 in service (2017)
Robalo GC45 Arsenal de Río Santiago     1940 deleted 1986



Displacement normal, t

208

Displacement full, t

270

Length, m

33.2

Breadth, m

4.00

Draught, m

1.90

No of shafts

2

Machinery

2 MAN 6V23-5/33 diesels

Power, h. p.

880

Max speed, kts

11

Fuel, t

diesel oil

Endurance, nm(kts)

3400(10)

Armament

2 x 1 - 12.7/90

Complement

12

Ship project history: Tug-type vessels.

Modernizations: 1970s: + Decca radar

Naval service: No significant events.

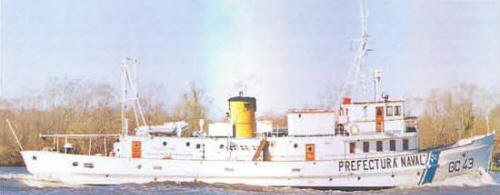

Mandubi 1994

Ivan Gogin, 2017
