ARGENTINEAN NAVY (ARGENTINA)

COASTAL FORCES

INTRÉPIDA fast attack craft (torpedo) (1974)

Intrépida 2000

Name No Builder Laid down Launched Comm Fate
Intrépida P85 Lürssen, Vegesack, West Germany   2/12/1973 3/8/1974 in service (2017)
Indómita P86 Lürssen, Vegesack, West Germany   8/4/1974 10/4/1975 in service (2017)



Displacement normal, t

240

Displacement full, t

268

Length, m

42.3 pp 44.9 oa

Breadth, m

7.40

Draught, m

2.28 propellers

No of shafts

4

Machinery

4 MTU MD872 diesels

Power, h. p.

14400

Max speed, kts

37

Fuel, t

diesel oil

Endurance, nm(kts)

1700(16)

Armament

1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 40/70 Breda-Bofors 564, 2 - 533 TT

Sensors Decca 626, WM-22, M-11 radars, Cutlass ECM suite

Complement

42

Ship project history: TNC45 design, ordered in 1970. The TT fire SST4 torpedoes.

Modernizations: 1997, Intrépida: - 1 x 1 - 40/70; + 2 x 1 MM38 Exocet SSM (2 MM38)

2014, Indómita: diesels were replaced by 4 Volvo-Penta AMT D34 (6000hp, 22kts); - 1 x 1 - 76/62, 2 x 1 - 40/70, 2 - 533 TT; Decca 626, WM-22 radars; + 2 x 1 - 12.7/90, 2x nav. radars

Naval service: Since 2014 Indómita serves as patrol for Southern Seas.

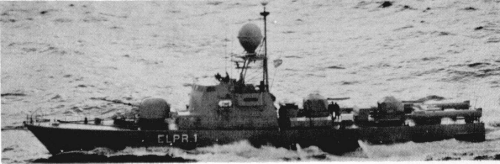

Intrépida 1978

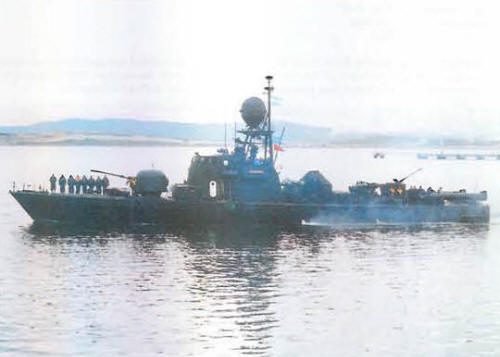

Intrépida 2001

Ivan Gogin, 2017
