REI KINGURY KIA BANGUELA patrol craft (2009)

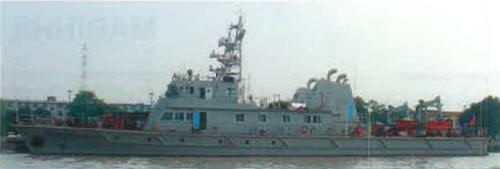

Rei Mandume Ndemufayo 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Rei Kingury Kia Banguela | D3011 | Xijiang, Luzhou, China | 9.2009 | in service (2020) | |||
| Rei Bula Matadi | Xijiang, Luzhou, China | 9.2009 | in service (2020) | ||||
| Rei Ekuiki II | Xijiang, Luzhou, China | 9.2009 | in service (2020) | ||||
| Rei Mandume Ndemufayo | Xijiang, Luzhou, China | 9.2009 | in service (2020) | ||||
| Rei Mpanzu A Nimi | Xijiang, Luzhou, China | 9.2009 | in service (2020) |
Technical data
| Displacement standard, t | 320 brt |
|---|---|
| Displacement full, t | |
| Length, m | 47.4 |
| Breadth, m | 7.60 |
| Draught, m | 2.55 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V4000 M70 diesels |
| Power, h. p. | 4730 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 420(20) |
| Armament | none |
| Electronic equipment | 2x radars |
| Complement |
Standard scale images
Rei Bula Matadi 2010
Graphics
Rei Mandume Ndemufayo 2009
Project history
Department of Fisheries.
Modernizations
None.
Naval service
No significant events.
