NGOLA KILUANGE patrol ships (2012)





Nzinga Mbandi 2012

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ngola Kiluange     Damen, Galati, Romania   9.12.2011 12.2012 in service (2020)
Nzinga Mbandi     Damen, Galati, Romania   9.5.2012 11.2012 in service (2020)


Technical data


Displacement standard, t

1022

Displacement full, t
Length, m

56.9 pp 61.9 oa

Breadth, m

9.70

Draught, m

3.25

No of shafts

2

Machinery

2 MTU 16V4000 M70 diesels

Power, h. p.

6310

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

helicopter deck

Electronic equipment

2x radars

Complement

45



Graphics

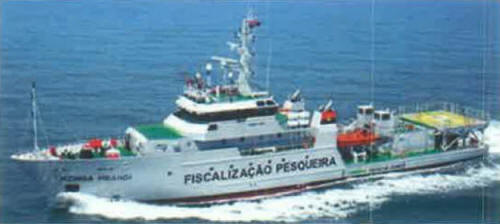

<i>Nzinga Mbandi </i>2012
Nzinga Mbandi 2012


Project history

Fishery Inspection Surveillance Vessels. 6.7m inspection launch is carried aft. Have hospital with 12 beds. 30t bollard pull.

Modernizations

None.

Naval service

No significant events.
