BAÍA FARTA patrol ship (2018)
Baía Farta
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Baía Farta | FRV7417 | Damen, Galati, Romania | 9.11.2017 | 8.2018 | in service (2020) |
Technical data
| Displacement standard, t | 3209 brt |
|---|---|
| Displacement full, t | |
| Length, m | 74.1 |
| Breadth, m | 16.4 |
| Draught, m | 8.70 |
| No of shafts | 1 |
| Machinery | 2 Wärtsilä 9L20 diesel-generators, 1 Wärtsilä 6L20 diesel-generator, 2 electric motors |
| Power, h. p. | 4480 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 9000(13) |
| Armament | none |
| Electronic equipment | 2x radars |
| Complement | 29 + 22 scientists |
Standard scale images

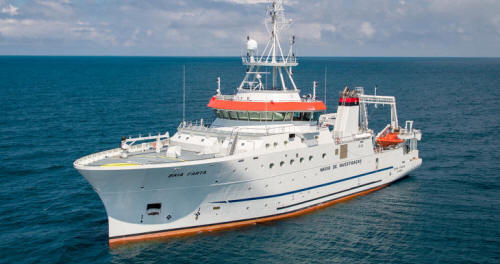

Baía Farta 2020
Graphics
Baía Farta
Project history
Department of Fisheries. Patrol ship intended for hydrographic, acoustic, environmental and oil-and-gas survey duties.
Modernizations
None.
Naval service
No significant events.
