PATRULHEIRO patrol boats (1993-1994)
Patrulheiro 1993
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Patrulheiro Preservador Temerario |
Couach, Arcachon, France: Patrulheiro, Preservador, Temerario |
1993 - 1994: Patrulheiro, Preservador, Temerario |
None |
none |
in service (2020): Patrulheiro, Preservador, Temerario |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | |
| Length, m | 19.3 |
| Breadth, m | 5.55 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 Baudouin V12BTI diesels |
| Power, h. p. | 1680 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(18) |
| Armament | none |
| Electronic equipment | Furuno 1830 radar |
| Complement | 8 |
Graphics

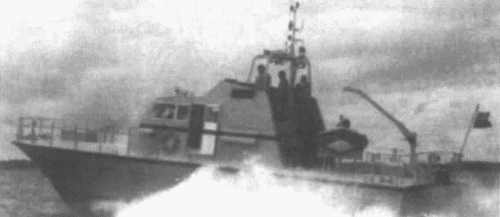

Patrulheiro 1993
Project history
Plascoa type. GRP hull.
Modernizations
None.
Naval service
No significant events.
