MANDUME patrol boats (1993)

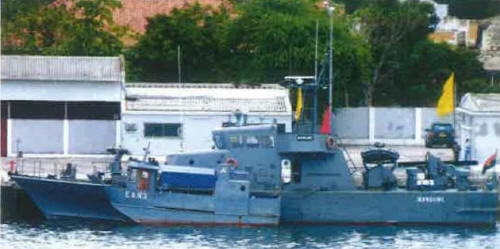

Mandume 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Mandume | P100 | Bazán, San Fernando, Spain | 11.1991 | 11.9.1992 | 28.1.1993 | in service (2020) | |
| Polar | P102 | Bazán, San Fernando, Spain | 11.1991 | 11.9.1992 | 28.1.1993 | in service (2020) | |
| Atlantico | P104 | Bazán, San Fernando, Spain | 2.1993 | 4.1993 | in service (2020) | ||
| Golfinho | P106 | Bazán, San Fernando, Spain | 2.1993 | 4.1993 | in service (2020) |
Technical data
| Displacement standard, t | 104 |
|---|---|
| Displacement full, t | 112 |
| Length, m | 26.5 pp 29.1 oa |
| Breadth, m | 5.93 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 2 Paxman 16SET-CWM diesels |
| Power, h. p. | 3560 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(15) |
| Armament | 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Decca radars |
| Complement | 11 |
Graphics
Mandume 2012
Project history
Ordered in 1990 for fisheries patrol duties. Steel hull, aluminium superstructure.
Modernizations
None.
Naval service
No significant events.
