FIGHTING SHIPS OF THE WORLD
ALGERIA
COASTAL FORCES
No651 large patrol craft (1958-1960/1965-1967)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 651 | 532 Yd, Kerch', USSR | 1958-60 // 10.1965 | deleted 1984 | ||||
| 652 | 532 Yd, Kerch', USSR | 1958-60 // 10.1965 | deleted 1984 | ||||
| 653 | 532 Yd, Kerch', USSR | 1958-60 // 10.1967 | deleted 1984 | ||||
| 654 | 532 Yd, Kerch', USSR | 1958-60 // 10.1967 | deleted 1984 | ||||
| 655 | 532 Yd, Kerch', USSR | 1958-60 // 10.1967 | deleted 1984 | ||||
| 656 | 532 Yd, Kerch', USSR | 1958-60 // 10.1967 | deleted 1984 |
Technical data
| Displacement standard, t | 190 |
|---|---|
| Displacement full, t | 216 |
| Length, m | 41.7 |
| Breadth, m | 6.18 |
| Draught, m | 1.85 |
| No of shafts | 3 |
| Machinery | 3 40DM diesels |
| Power, h. p. | 6600 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(12) |
| Armament | 2 x 2 - 25/82 2M-3M, 4 x 5 RBU-1200 Uragan ASWRL, 2 DCR (24), 18 mines |
| Electronic equipment | Reya radar, Tamir-11 sonar |
| Complement | 27 |
Standard scale images

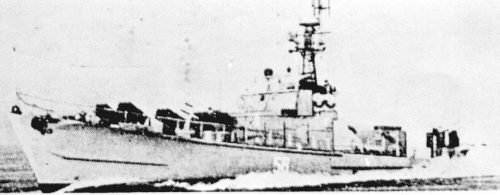

651 1970
Graphics
Project history
Former Soviet Project 201M submarine chasers.
Modernizations
None.
Naval service
No significant events.
